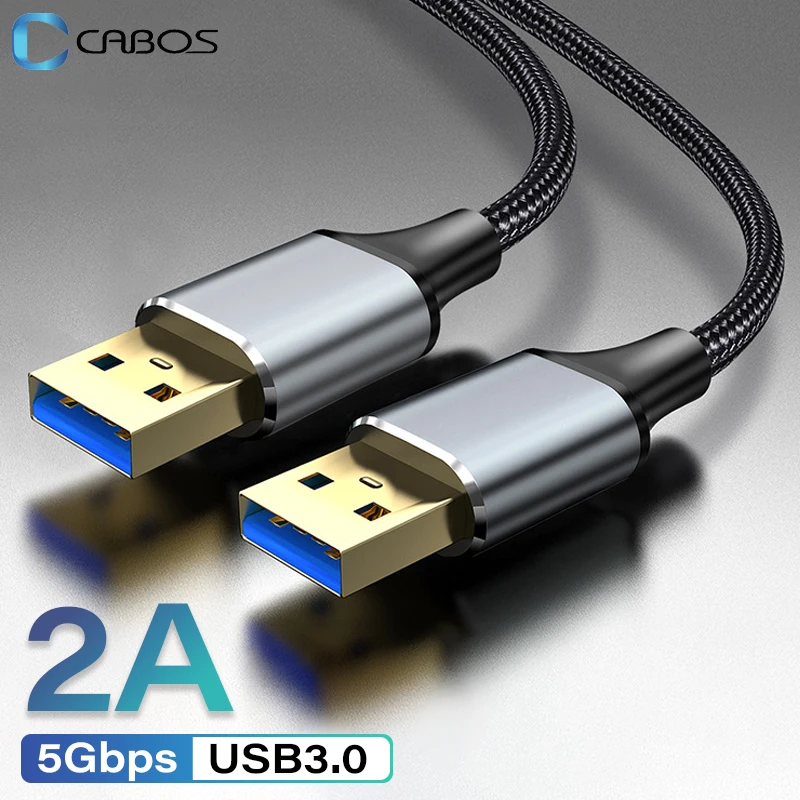

USB 3.0 Extension Cable Type A Male to Male 5Gbps USB to USB 2.0 Extender for Radiator Hard Disk TV Box USB3.0 Cable Extension



[Product name]: Universal USB3.0 extension cable USB3.0 high-speed data cable

[Product specifications]: 0.5M, 1M, 1.5M 2m 3m

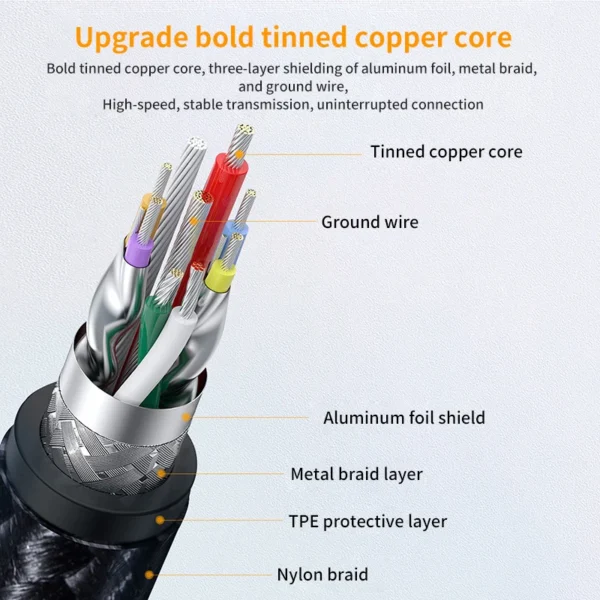

[Wire Core Specifications]: Standard all-copper 9-core + aluminum foil + 96 braided shielding net

[Copper wire specifications]: (30AWG*2+EAM)*2P+30AWG*1P+24AWG*2C+AEB PVC OD4.5+0/-0.2MM

[Shielding Performance]: Double shielding (braided shielding + aluminum foil shielding) can greatly reduce electromagnetic interference and radio interference, and stably transmit data

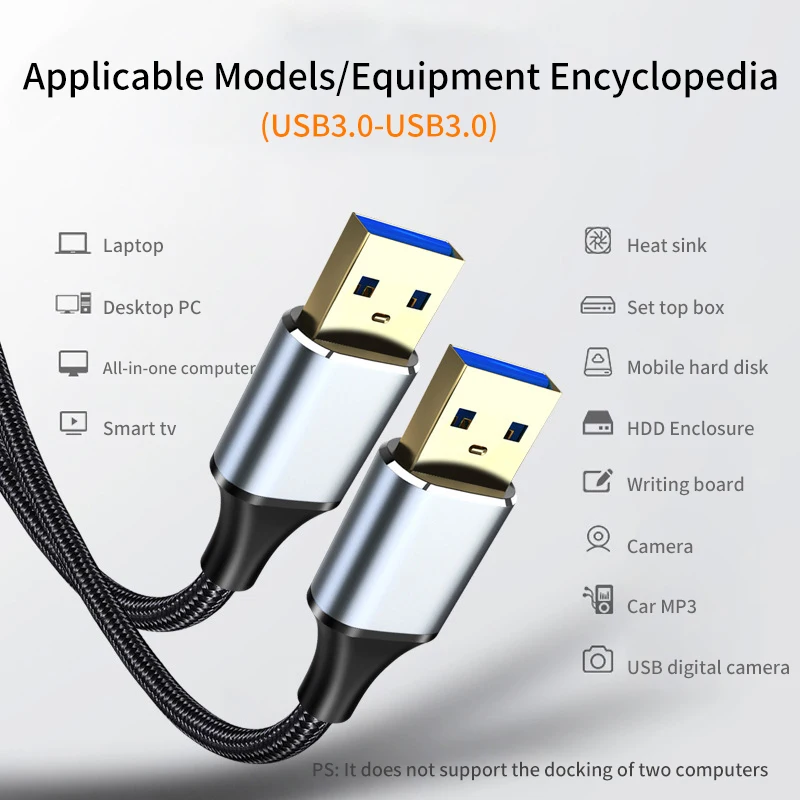

[Scope of application]: Data transmission between devices with USB interface, connection extension.

[Transmission speed]: 5Gbp/s

【Features】:

1. Full-duplex data transmission. In USB3.0, in addition to the 4 main lines, two additional groups of cables are added (each group has a pair of signal lines and ground wires, and the periphery is shielded by aluminum foil to prevent interference with each other) , one group is used to send data, and the other is used to receive data, which means that USB3.0 can perform read and write operations simultaneously at full speed. Previous USB versions did not support full-duplex data transmission.

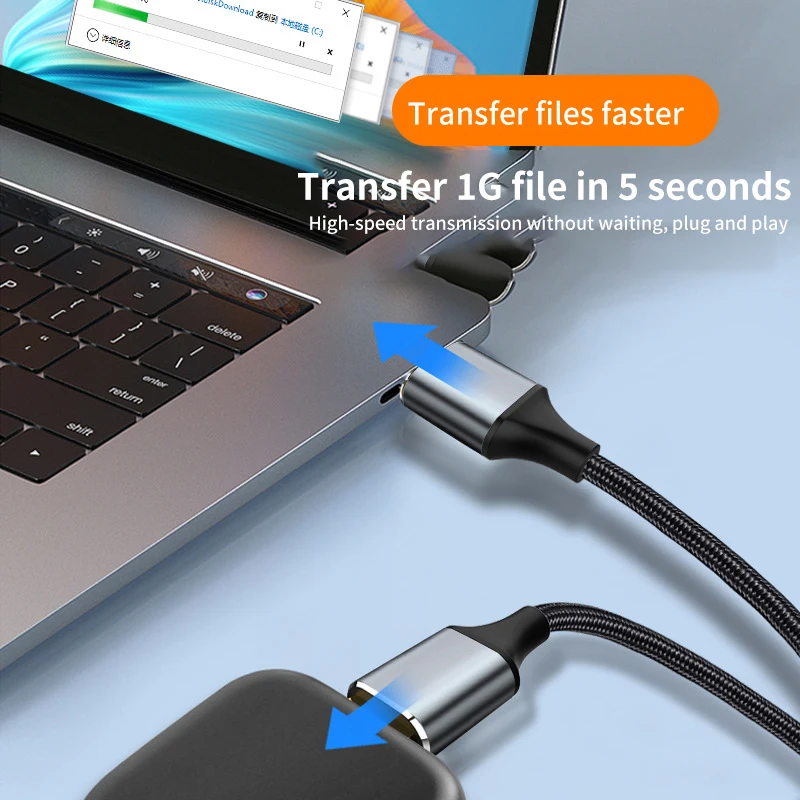

2. Ultra-fast transmission speed, USB3.0 is also considered SuperSpeedUSB, which greatly improves the bandwidth, up to 5Gbps full duplex, which is 625MB/S, but the actual transfer rate is about 3.2Gbps, which is 400MB/S, USB2.0 It is 480Mbps half-duplex, which is 60MB/S. USB3.0 can transfer large amounts of files (such as high-definition movies) at the storage rate limited by the storage device. For example, a flash memory using USB3.0 can transfer 1GB of data to a host in 15 seconds, while USB2.0 It takes 43 seconds.

3. Supports USB 3.0 (5Gbps), compatible with USB 2.0 (480Mbps) and USB 1.1 (12Mbps) specifications.
